2.0 Inch BDI Meter Digital Smart Meter Battery Discharge Indicator

Name: 2.0 Inch BDI Meter Digital Smart Meter Battery Discharge Indicator
Brand: Dala Technology Co., Ltd.
SKU: YB20
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: DALA

Model Number: YB20

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: standard packing, as customer demands

Delivery Time: 7 - 15 working Days

Payment Terms: L/C,T/T,etc.

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                    2.0 Inch BDI Meter, 2.0 Inch Battery Discharge Indicator, Digital Smart Meter Battery Discharge Indicator


Screen Type:	Monochrome LCD Screen, Background In White	Size:	2.0 Inch
Connector:	CAN	Baud Rate Range:	9600~115200Kbps

Screen Type:	Monochrome LCD Screen, Background In White
Size:	2.0 Inch
Connector:	CAN
Baud Rate Range:	9600~115200Kbps

Description

2.0 Inch BDI Meter Digital Smart Meter Battery Discharge Indicator

YB20 BDI Meter Digital Instrumentation 2.0 inch

Product Description:

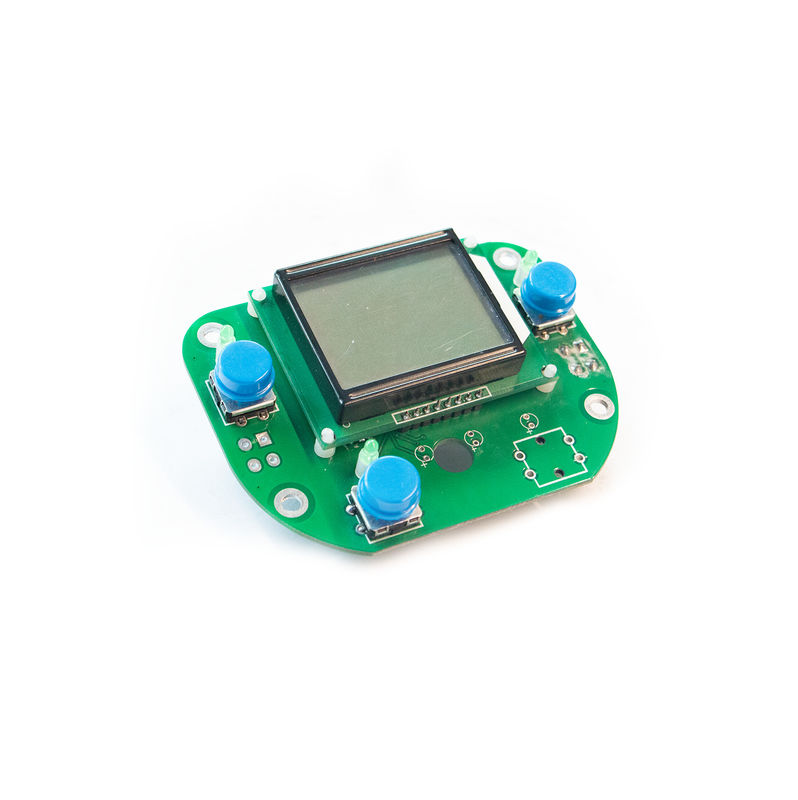

DN28-YB20 is the self-developed 2.0-inch monochrome LCD (background in white), which can be customized for vehicle function control and status display. The LCD has two outlets, one for the motor controller and the other for the D2S motor controller or IOT module. It can be used for floorcare vehicles or logistic forklift trucks.

Features

Highly integrated and customized display which provides real-time vehicle operation information an dfunction control via the display panel.
The logic processor eliminates or reduces complicated vehicle circuit design, such as "timer circuit" and others.
The backlit LCD screen is easy to use under various lighting conditions.
Real-time clock provides accurate data logging and real-time event marking.
Extensive function status icons are to provide max. information readability, including fault alarms and fault codes.

Display

2.0 Inch BDI Meter Digital Smart Meter Battery Discharge Indicator 0

Icons	Descriptions
Seat Switch	Display of seat switch status
Dirty Water Tank Full	Display of Dirty Water Status
Clean WaterTank Empty	Display of clean water status
Running Direction	Display of Vehicle Running Direction
Warning	Display of Controller Failure Status
Water Level Setting	Indicating Water Level Setting
Dashboard	Display of Vehicle speed
Vacuum	Display of Vacuum Motor Working Status
Brush	Display of Brush Motor Working Status
ECO	ECO Function Switch
5-digit LCD	Digital Display in the Range of 0.0-99999
Character 'h'	Indicating the Time (hours)
3-digit LCD	Digital display in the Range of 0-999
Symbol '%'	Percentage
Character 'v'	Indicating Voltage
Battery Level	Display of the current BDI (5 Levels)
IOT Network	Display of IoT Network Status

Specification

Content	Parameters
Screen Type	Monochrome LCD screen, background in white
Size	2.0 inch
Connector	CAN
Input/Output	10V~35V supply voltage, with protection against incorrect polarity connection or signal connection.
OperationTemperature	-20~50℃
Adaptive equipment	XD515,XD510,XD3,XD2,IOT Grid Module
Baud Rate Range	9600~115200Kbps
Program Upgrade	Support

Dimensions

2.0 Inch BDI Meter Digital Smart Meter Battery Discharge Indicator 1
