Forklift Controller Intelligent Meters 4.3 Inch Battery Discharge Indicator YB43S

Name: Forklift Controller Intelligent Meters 4.3 Inch Battery Discharge Indicator YB43S
Brand: Dala Technology Co., Ltd.
SKU: YB43S
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: DALA

Model Number: YB43S

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: standard packing, as customer demands

Delivery Time: 7 - 15 working Days

Payment Terms: L/C,T/T,etc.

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                    Forklift Controller Intelligent Meters, Intelligent Meters 4.3 Inch, Forklift Controller Battery Discharge Indicator


Voltage Range (VDC):	DC15V-DC72V	Resolution:	480*720
Screen Size:	4.3"	Connector:	AMPSEAL 770680-1

Voltage Range (VDC):	DC15V-DC72V
Resolution:	480*720
Screen Size:	4.3"
Connector:	AMPSEAL 770680-1

Description

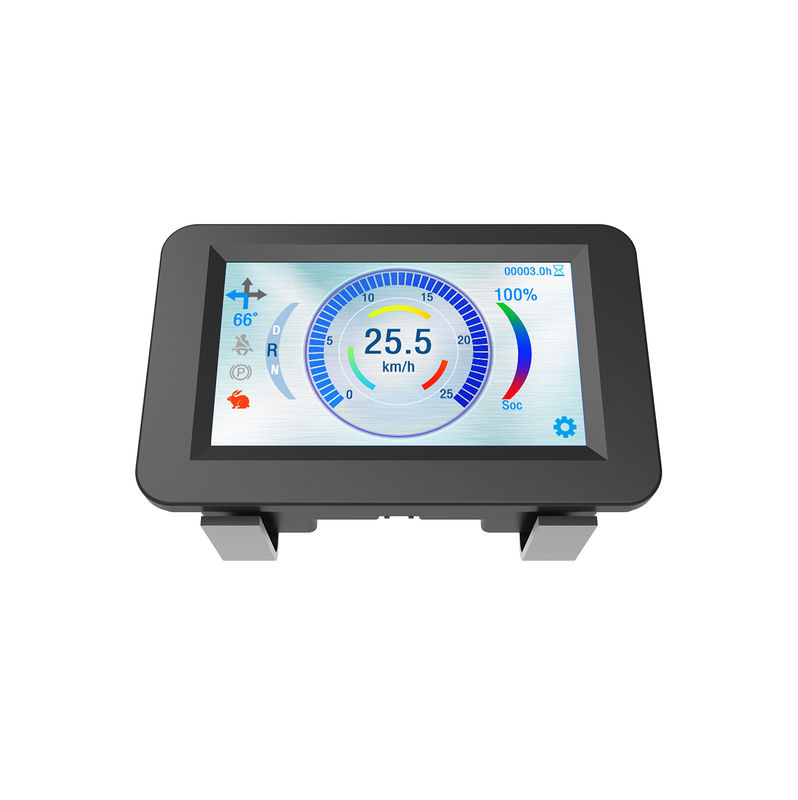

Forklift Controller Intelligent Meters 4.3 Inch Battery Discharge Indicator YB43S

YB43S intelligent meters connected to forklift controller 4.3inch

Product Description:

YB43S is intelligent meters,which are connected to forklift controller through CAN bus and can display vehicle speed, power, hour meter, steering angle, speed mode, fault code and other information through communication with vehicle, with the advantages of timely communication, real-time display and high visualization.

The instrument does not need to be connected to the battery, it can be connected to the controller through the wiring harness. Such a simple connection method can reduce the cost of the wiring harness and save installation time.

The screen adopts 4.3" TFT color LCD screen, which can display various information of the vehicle.

Specification

Content	Parameters
Voltage levels generally selected	24V, 48V, 80V (wide voltage range 12 - 100Vmax)
Baud rate	125Kbits/s (250, 500, 1000Kbits/s optional)
Display	4.3" TFT color LCD
Plug-in model	AMPSEAL 770680-1
Enclosure Protection	IP68
Electromagnetic compatibility in accordance with thfollowing standards	SAE J1455 SECTION 4.11.2.2.1 SAE J1810 SECTION 5.3.2 EN 61000-4-2 EN 61000-4-3 EN 61000-4-6
Working temperature	-40℃~70℃
Storage temperature	-40℃~85℃
Working humidity	10%~95%

Dimensions

Forklift Controller Intelligent Meters 4.3 Inch Battery Discharge Indicator YB43S 0
