DC12V-DC72V BDI Meter 1.44" LCD Bdi Battery Discharge Indicator

Name: DC12V-DC72V BDI Meter 1.44" LCD Bdi Battery Discharge Indicator
Brand: Dala Technology Co., Ltd.
SKU: YB15
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: DALA

Model Number: YB15

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: standard packing, as customer demands

Delivery Time: 7 - 15 working Days

Payment Terms: L/C,T/T,etc.

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                            72V BDI Meter, BDI Meter 1.44" LCD, LCD Bdi Battery Discharge Indicator


Voltage Range (VDC):	DC12V-DC72V	Resolution:	240*240
Screen Size:	1.44"	Connector:	Molex-5566-6A
Mounting Cutout SIZE:	52mm

Voltage Range (VDC):	DC12V-DC72V
Resolution:	240*240
Screen Size:	1.44"
Connector:	Molex-5566-6A
Mounting Cutout SIZE:	52mm

Description

DC12V-DC72V BDI Meter 1.44" LCD Bdi Battery Discharge Indicator

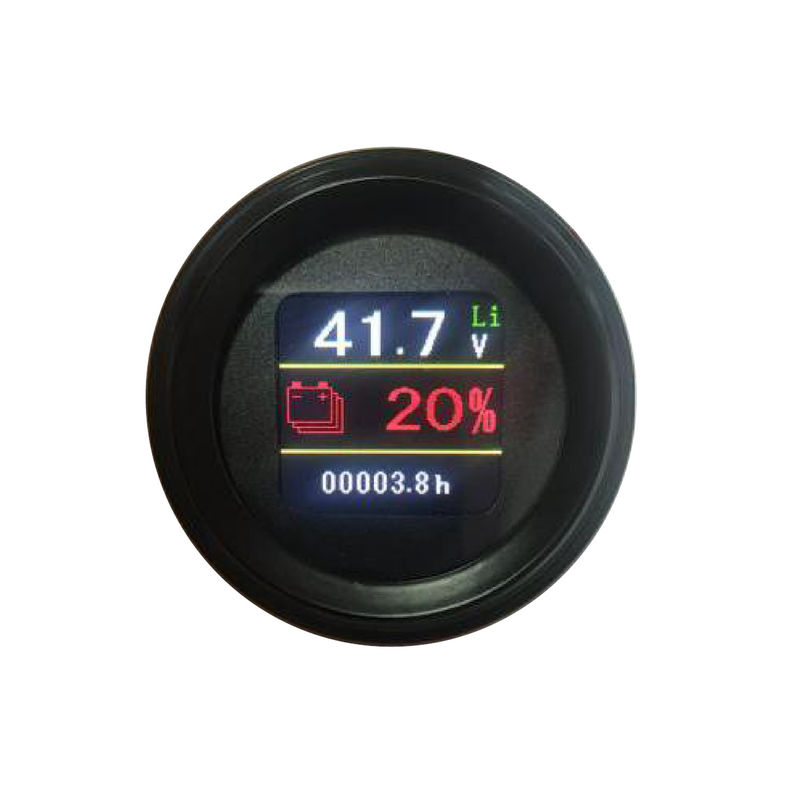

YB15 display instrument 1.44” LCD, Resolution 240*240 Female molex Minifit pin harness

Product Description:

YB15 MDI CAN BASIC is a display instrument, suitable for all electric vehicles equipped with DALA controller;

YB15 MDI CAN BASIC is a vehicle instrument based on CAN communication. It can communicate with the vehicle to display information including vehicle speed, battery state-of-charge, hour meter, speed mode, fault code and others. It has merits of real-time communication, real-time display and high-level visualization, etc.

YB15 MDI CAN BASIC instrument does not need to be connected to the battery, but can be connected to the controller through a simple wiring harness. Such a simple connection method can not only reduce the cost of the wiring harness, but also save installation time.

Display

icons	Descriptions
BDI	Display battery state of charge, and Red to indicate the power is low.
Fault Code	Display fault code of the controller, multiple faults will be shown cyclically (in general 2 for tractor, 5 for pump, 6 for steering and 16 for instrument.)
Speed Mode	Turtle indicates the vehicle is in low speed.
Service Mode	When system failure is detected, service indicator and fault code will be shown simultaneously in Red.
Hour Meter	The digits show the cumulative power-on time, in H
Fault Indicator	Red to indicate system failure is detected, Green to indicate system in normal.
Vehicle Speed	Display current vehicle speed, in KM/H.

Specification

Content	Parameters
Operating Voltage	24V,48V(Wide Voltage Range9-72V)
Baud Rate	125Kbits/s( 250,500,800,1000Kbits/s Optional)
Circuit Protection	Short Circuit Protection
Display	1.44” LCD, Resolution 240*240
Mating Pins	Female molex Minifit pin harness
Enclosure Protection	IP65
Operating Temp. Range	-40°C ~ +85°C
Storage Temp. Range	-50°C ~ +90°C

Dimensions
