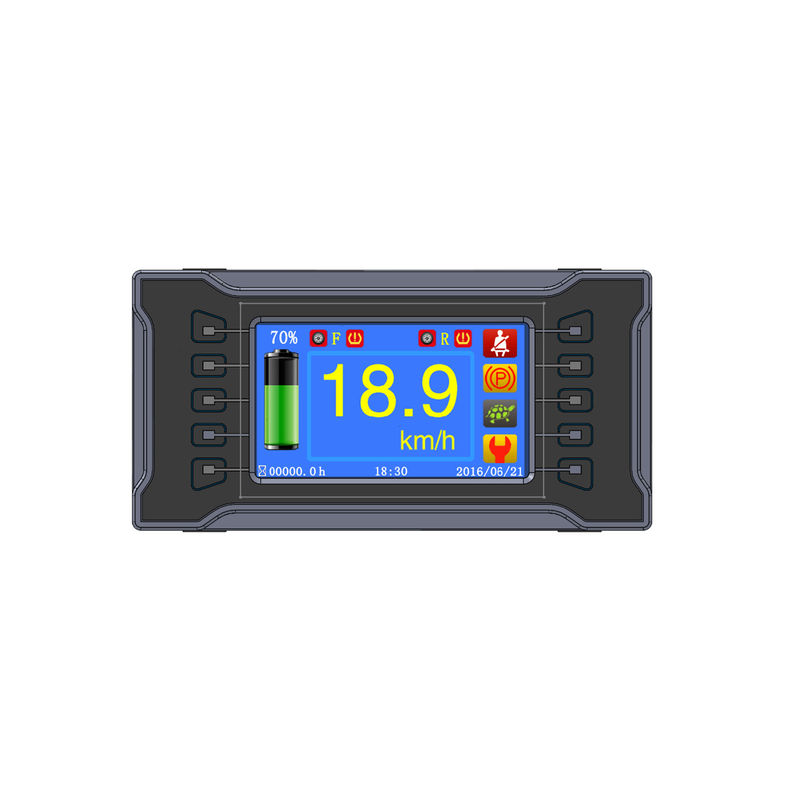

480*272 Smart Meter Compact 4.3 Inch Intelligent Meter DC15V-DC72V

Name: 480*272 Smart Meter Compact 4.3 Inch Intelligent Meter DC15V-DC72V
Brand: Dala Technology Co., Ltd.
SKU: YB43
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: DALA

Model Number: YB43

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: standard packing, as customer demands

Delivery Time: 7 - 15 working Days

Payment Terms: L/C,T/T,etc.

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                            480*272 Smart Meter, Intelligent Meter DC15V, 480*272 Intelligent Meter


Voltage Range (VDC):	DC15V-DC72V	Resolution:	480*720
Screen Size:	4.3"	Connector:	AMPSEAL 770680-1
Mounting Cutout SIZE:	170.5*80.5mm

Voltage Range (VDC):	DC15V-DC72V
Resolution:	480*720
Screen Size:	4.3"
Connector:	AMPSEAL 770680-1
Mounting Cutout SIZE:	170.5*80.5mm

Description

480*272 Smart Meter Compact 4.3 Inch Intelligent Meter DC15V-DC72V

YB43 intelligent and compact instrument 480*272, 24bit true color 4.3inch

Product Description:

YB43 is an intelligent and compact instrument. It is connected to the controlle of the vehicle through the CAN bus, just like the eyes of the vehicle, giving the vehicle a window to communicate with the operator.

YB43's 4.3 "TFT color LCD screen can Display various information about the vehicle, and special functions can be customized per request.

YB43 works well with DALA controllers.

Specification

Content	Parameters
Operating voltage	18V-80V (rated)
LCD resolution	480*272, 24bit true color
Electromagnetic compatibility meets the following standards	SAE J1455 SECTION 4.11.2.2.1 SAE J1810 SECTION 5.3.2 EN 61000-4-2 EN 61000-4-3 EN 61000-4-6
Enclosure Protection	IP65
Working temperature	-40℃~70℃
Storage temperature	-40℃~85℃
Working humidity	10%~95%

Built-in clock – optional, coin cell battery.
Handheld terminal function - connects to the controller via panel keys. Optional, can be implemented subsequently.
Password keypad function.
Hour meter function, the hour meter is clearly recorded to 0 by a specific button.

Dimensions

480*272 Smart Meter Compact 4.3 Inch Intelligent Meter DC15V-DC72V 0

Wiring schematic

480*272 Smart Meter Compact 4.3 Inch Intelligent Meter DC15V-DC72V 1
