A0P 24V 36v 48v 250A Variable Speed Controller For Stand-On Stacker

Product Details

Place of Origin: Chengdu,China

Brand Name: DALA

Model Number: A0P

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: standard packing, as customer demands

Delivery Time: 7 - 15 working Days

Payment Terms: L/C,T/T,etc.

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    A0P Variable Speed Controller, Variable Speed Controller For Ac Motor, 250A 48v Variable Speed Controller


Motor Type:	ACIM	Function:	Traction
Appolication:	Stand-on Stacker,Floor Cleaning Machine,Scissor Lift,floor Sweeping Machine,Electric Boat	Nominal Voltage Range (VDC):	24V,36/48V
Maximum Current:	250A	Size:	120.5155.567.7mm

Motor Type:	ACIM
Function:	Traction
Appolication:	Stand-on Stacker,Floor Cleaning Machine,Scissor Lift,floor Sweeping Machine,Electric Boat
Nominal Voltage Range (VDC):	24V,36/48V
Maximum Current:	250A
Size:	120.5155.567.7mm

Description

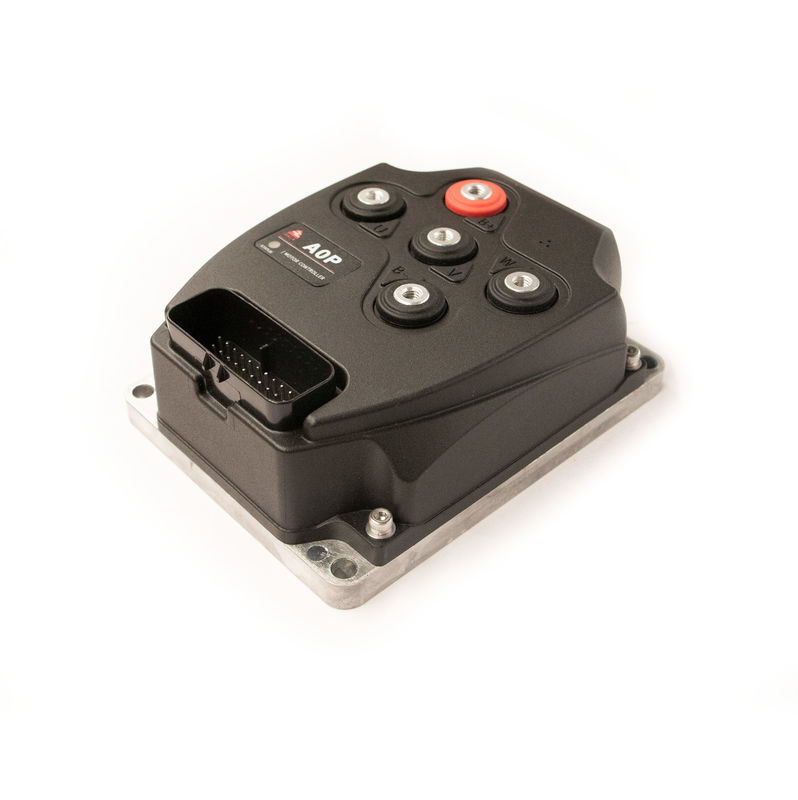

A0P 24V 36v 48v 250A Variable Speed Controller For Stand-On Stacker

Ac Motor Speed Control 24V 36v 48v Current Max 250A Ac Electric Motor Speed Control A0P

Product Description:

With a dual-microprocessor architecture and multiple self-developed and patented technologies, the A0P series controller performs excellent functionality and stability for on-vehicle traction controlling for IPM & ACIM motors.

Our A0P controller also has extremely good compatibility comparing to other brands as it’s compatible with majority of 3^rd-party motors which ensures a successful application in many scenarios without limitation on interoperability.

Features:

It has diversified output models (200A/250A), under voltage of 24V/36V/48V.
It supports both serial ports and CAN communication protocols.
Rich kinds of peripheral connections are supported:

small power outputs (maximum output 3A);
throttle inputs;
digital inputs & analog voltage output;
isolated pulse output.

List of encoder types supported:

A/B incremental encoder;
A/B/I absolute encoder;
Sin/cos encode;

It can provide FOC control of ACIM/IPM(SPMSM)/BLDCM motors.
Several valuable technologies adopted such as zero calibrating of position sensor for IPMSM/BLDCM motor and automated parameter recognition for ACIM motors.
Unique technologies for speed robustness control and low-speed smoothness control provide extra good vehicle controlling experiences for customers.

Safety and Reliability

The dual-microprocessor architecture is an up-to-date design and highly recognized practice for ensure the safety and reliability of the product.
Fail-safe power supply component by using isolated transformer.
Over-voltage cutback, thermal cutback, short-circuit protection and other safety features ensure the safety of controller outputs.

Specifications :

Content	Parameters
Model	A0P-2201	A0P-2251	A0P-4201	A0P-4251
Nominal Input Voltage	24	24	36/48	36/48
2 Min RMS Current Rating (Arms)	200A	250A	200A	250A
60 Min RMS Current Rating (Arms)	90A	110A	90A	110A
Sensor Interface	Incremental Encoder
Communication	CAN Communication & Serial
Operating Ambient Temperature	-40℃~50℃
Storage Ambient Temperature	-40℃~85℃
Insulation Performance	Input and output to the housing DC 500V leakage current 0.05mA, insulation resistance 10MΩ
Ingress Protection	IP65
Efficiency	97%
Vibration Standard	GB/T2423
Motor Control	Vector control with speed sensor
Thermal Requirement	The controller must be installed in a well-ventilated place,otherwise forced air-cooling is required.
Motor Type	AC motor
