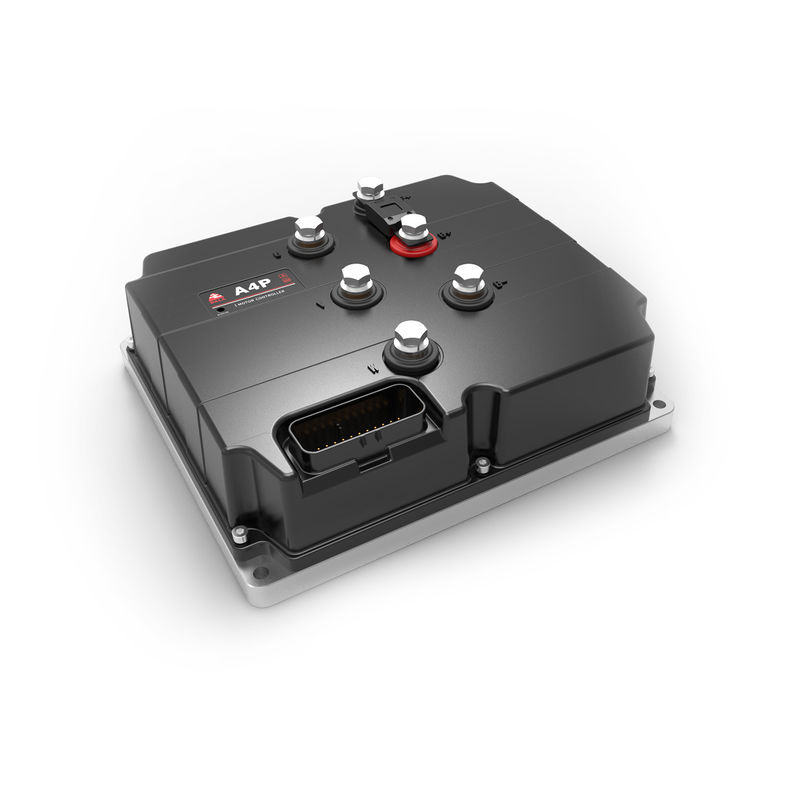

A4P 700A 24V PMSM Servo Motor Arduino DRIVER For Electric Vehicles

Product Details

Place of Origin: Chengdu,China

Brand Name: DALA

Model Number: A4P

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: standard packing, as customer demands

Delivery Time: 7 - 15 working Days

Payment Terms: L/C,T/T,etc.

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    Pmsm Motor Control For Electric Vehicles, 700A PMSM Motor Controller, 700A Pmsm Motor Control


Motor Type:	ACIM/PMSM/IPM	Function:	Traction
Appolication:	Counter Balance Truck,Sightseeing Vehicle,Aerial Work Platform,Agricultural Machinery	Nominal Voltage Range (VDC):	24V
Maximum Current:	700A	Size:	243.5208.586.5mm

Motor Type:	ACIM/PMSM/IPM
Function:	Traction
Appolication:	Counter Balance Truck,Sightseeing Vehicle,Aerial Work Platform,Agricultural Machinery
Nominal Voltage Range (VDC):	24V
Maximum Current:	700A
Size:	243.5208.586.5mm

Description

A4P 700A 24V PMSM Servo Motor Arduino DRIVER For Electric Vehicles

Ac Electric Motor Speed Control 24V Current 700A A4P-2701 ACIM IPMSM

Product Overview:

Introducing the A4P series controller, engineered with a dual-microprocessor architecture and powered by a Cortex-M4F core processor operating at a maximum frequency of 240MHz. This controller guarantees exceptional performance, ensuring optimal functionality and robustness for on-vehicle traction and pump control applications.

One of its key advantages is its high compatibility with IPM/ACIM motors from a wide range of third-party brands.

Key Features:

Equipped with both serial and CAN communication capabilities, the A4P controller ensures compatibility with a diverse array of application scenarios.
Comprehensive peripheral connectivity options include support for small power outputs, throttle inputs, digital inputs, analog voltage output, and more, catering to a wide range of customer requirements.
Featuring an increased number of MOSFETs, the A4P controller delivers enhanced discharge capacity, ensuring optimal performance in demanding environments.

Safety and Reliability:

Benefit from innovative designs such as the isolated CAN interface and isolated minus-voltage driven mechanism, enhancing reliability and peace of mind for customers.
A rich array of protection measures, including power-fail detection, over-voltage cutback, thermal cutback, and short-circuit protection, adhere to the latest industrial standards, ensuring maximum safety.
The dual-microprocessor architecture provides a structural enhancement in safety and reliability, setting new benchmarks in performance and peace of mind.

Specifications :

Content	Parameters
Model	A4P-2701
Nominal Input Voltage	24
2 Min RMS Current Rating (Arms)	700A
EncoderType	Incremental encoder, Absolute encoder, sin/cos encoder, rotary encoder (optional)
Communication	CAN / Serial
Working Ambient Temperature Range	-30℃~55℃
Storage Ambient Temperature	-40℃~85℃
Insulation Properties	Leakage current to ground ≤ 0.05mA (500VDC), insulation resistance > 10MΩ
Protection Grade	IP65
Efficiency	≥97%
Vibration Standard	GB/T2423
Motor Control Method	Vector Control
Thermal Requirements	Installation in a well-ventilated environment, otherwise air-cooler must be added
Motor Type	ACIM/PMSM/IPM
