D3E 130A Bldc Motor Controller En1175 control on lightweight material handling machines

Product Details

Place of Origin: Chengdu,China

Brand Name: DALA

Model Number: D3E

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: standard packing, as customer demands

Delivery Time: 7 - 15 working Days

Payment Terms: L/C,T/T,etc.

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    BiDi Brushed Dc Motor Speed Control, 130A Brushed DC Motor Controller, D3E Brushed DC Motor Controller


Motor Type:	Brushed DC Motor (Bi-Di)	Function:	Traction
Application:	Forklift Electric Forklifts,Floor-Cleaning Vehicles,And More	Nominal Voltage Range (VDC):	24V
Maximum Current:	130A	Size:	135.575.546.5mm

Motor Type:	Brushed DC Motor (Bi-Di)
Function:	Traction
Application:	Forklift Electric Forklifts,Floor-Cleaning Vehicles,And More
Nominal Voltage Range (VDC):	24V
Maximum Current:	130A
Size:	135.575.546.5mm

Description

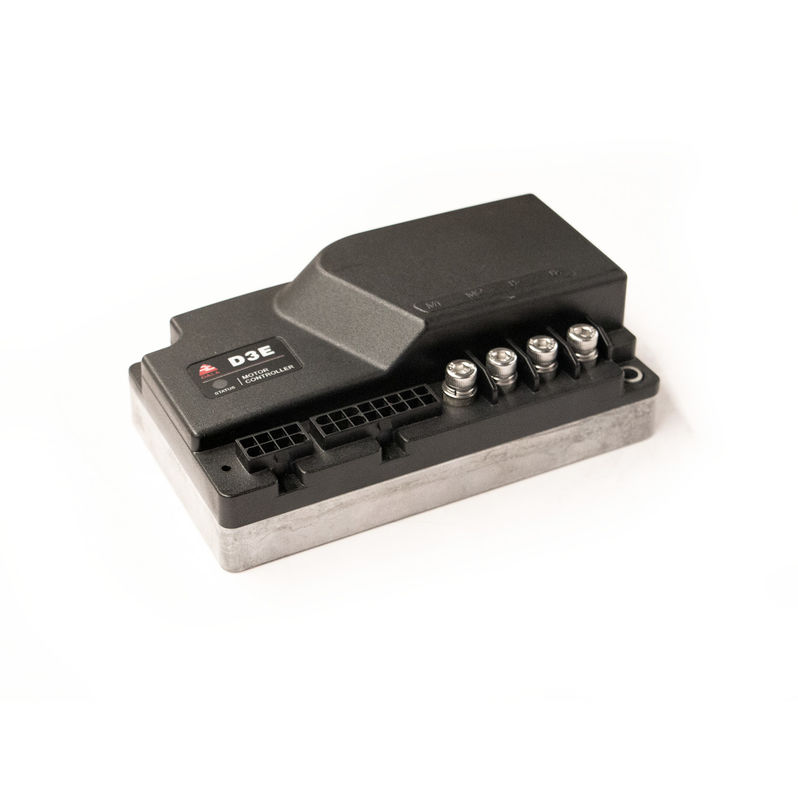

D3E 130A Bldc Motor Controller En1175 control on lightweight material handling machines

24V 130A brushed motor controller D3E for Brushed DC Motor (Bi-Di)

Product Description:

D3E is a brushed DC motor controller designed for the use of traction drive control on lightweight material handling machines such as forklift, trucks and many other kinds of industrial vehicles.

With its advanced software design, the functions of D3E is programmable and highly parameterized, which provides customers with flexible and easy application and maintenance of the product.

Features:

Functional integrity

Rating voltage/output at 24V/130A
2 micro-processors structure.
Built-in relay component (rating 24V/70A).
M5 power input and motor output binding posts adopted.
Comply to international standard EN13849-1(Cat2,PL=D) and certified
Support both CAN and UART communication ports.

Robust Safety and Reliability

Supervisory control for traction
Interlock Braking
Emergency Reverse
Safety Brake
Speed Limit
Dangerous Load monitor.

Specifications

Content	Parameters
Model	D3E
Certification	EN1175-2020
Nominal Input Voltage	24
20s output Current Rating (A)	130A
2 Min output Current Rating (A)	70A
60 Min output Current Rating (A)	45A
Communication	Serial / CAN
Operating Temperature	-30℃~55℃
Storage Temperature	-40℃~85℃
IP Rating	IP65
Motor Type	Brushed DC Motor (Bi-Di)

Applications

D3E 130A Bldc Motor Controller En1175 control on lightweight material handling machines 0

Dimensions

D3E 130A Bldc Motor Controller En1175 control on lightweight material handling machines 1
