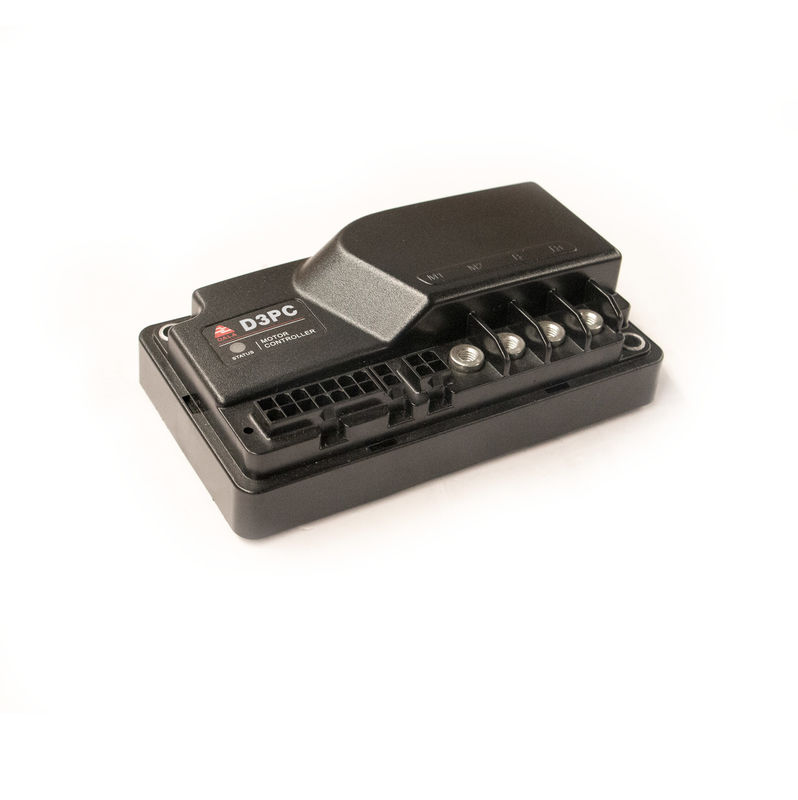

24V 130A Brushless Motor Controller For Electric Vehicle Can Communication

Name: 24V 130A Brushless Motor Controller For Electric Vehicle Can Communication
Brand: Dala Technology Co., Ltd.
SKU: D3PC
Availability: InStock

Product Details

Place of Origin: Chengdu,China

Brand Name: DALA

Model Number: D3PC

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: standard packing, as customer demands

Delivery Time: 7 - 15 working Days

Payment Terms: L/C,T/T,etc.

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    24V Bldc Speed Controller, D3PC Bldc Speed Controller, 130A Bldc Motor Controller


Motor Type:	DC Brushless Motor Controller	Function:	Traction
Appolication:	Electric Forklifts,floor-cleaning Vehicles,and More	Nominal Voltage Range (VDC):	24V
Maximum Current:	130A	Size:	1317241mm

Motor Type:	DC Brushless Motor Controller
Function:	Traction
Appolication:	Electric Forklifts,floor-cleaning Vehicles,and More
Nominal Voltage Range (VDC):	24V
Maximum Current:	130A
Size:	1317241mm

Description

24V 130A Brushless Motor Controller For Electric Vehicle Can Communication

Bldc Motor Driver D3PC 24V 130A For Brushed DC Motor Robust Safety And Reliability

Product Description:

The D3PC Motor Speed Controllers is a typical brushed DC motors controller with CAN communication functions. It’s for traction control of battery powered industrial vehicles such as forklifts, floorcare machines.

It’s a highly flexible and programmable product with powerful functions and reliable performance in various application scenarios and environments.

Features:

Full Featured

4 x Input Switch, 3 x NPN Output, Throttle types are supported.
Build-in regenerative break that can recycle the motor energy and recharge into battery when motor stop working.
Our self-developed motor control algorithms provide excellent climbing ability of the product and great customer experience.

Robust Safety and Reliability

Innovative design for the sealing and heat dissipation.
We offer safety control mechanisms beyond industrial standards: Faulty detection, prevent overvoltage, undervoltage, overcurrent, overheat, etc,.

Simple & Flexible

It’s designed to be easily and conveniently used by customer in terms of wiring, installation, parameter change, fault diagnostic…etc.
Our PC and handheld programmer tools support both on-site or remote upgrade of software.

Specifications

Content	Parameters
Model	D3PC
Nominal Input Voltage	24
20s output Current Rating (A)	130A
2 Min output Current Rating (A)	70A
60 Min output Current Rating (A)	45A
Communication	CAN
Operating Temperature	-30℃~55℃
Storage Temperature	-40℃~85℃
IP Rating	IP65
Motor Type	Brushed DC Motor (Bi-Di)

Applications

Dimensions

24V 130A Brushless Motor Controller For Electric Vehicle Can Communication 1
