24V Handheld Programmer Market Mainstream Controllers Hand Held Programmer DS13

Name: 24V Handheld Programmer Market Mainstream Controllers Hand Held Programmer DS13
Brand: Dala Technology Co., Ltd.
SKU: DS13
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: DALA

Model Number: DS13

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: standard packing, as customer demands

Delivery Time: 7 - 15 working Days

Payment Terms: L/C,T/T,etc.

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                            24V Handheld Programmer, Market Mainstream Controllers Handheld Programmer, 24V Hand Held Programmer


Nominal Voltage Range (VDC):	24V	Maximum Current:	100
Communication:	CAN/Serial	Appolication:	Market Mainstream Controllers
SIZE:	1509545.2

Nominal Voltage Range (VDC):	24V
Maximum Current:	100
Communication:	CAN/Serial
Appolication:	Market Mainstream Controllers
SIZE:	1509545.2

Description

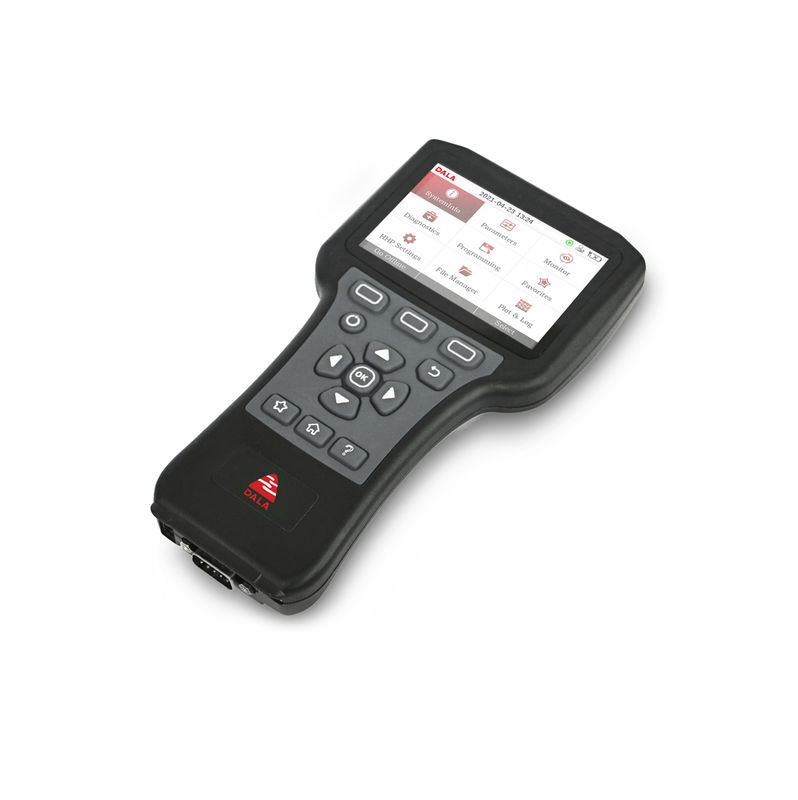

24V Handheld Programmer Market Mainstream Controllers Hand Held Programmer DS13

DS13 Handheld Programmer Compatible With Market Mainstream Controllers

Product Description:

The DS13 handheld programmer is a powerful and ideally tool for engineers working on customer sites.

The DS13 has rich of communication ports: DB9 (UART / CAN / RS485) for parameter programming, data monitor, fault diagnostic, firmware update, can be also used as instrument to check vehicle driving data. Supports USB master & slave mode for file transmission with flash disk, computer or other controller.

Features:

LCD Display

3.5" IPS color LCD, 180° view angle, backlight.

DS13 can connect and program not just DALA controllers, but also most of mainstream controllers in the market.

USB Flash Disk Master & Slave Mode

Files transmission & firmware updating via USB flash disk download files from mobile or laptop.

Flexible COM Ports

DB9 port (UART / CAN / RS485) for quick connecting with matched controller
USB Type-C for computer connection and file transmission
USB Tpye-A for files transmission and firmware updating via USB flash disk

Mobility

The DS13 can be powered by controller (via DB9) / portable charger (USb Type-C) or batteries.

Instrument

Rick of widgets on DS13 allows to work as an instrument to read vehicle driving data.

Specifications

Content	Parameters
Model	DS13
Display	3.5" color IPS LCD
Voltage range	10~96V
Input Power	1W
COM Ports	UART / CAN / RS485
Update	From USB flash disk
Storage	IP65
Power	AA Batteries *2
Working Temperater	-20℃~50℃
Ambient Temperater	-40℃~85℃
Weight	0.23kg

Dimensions:

24V Handheld Programmer Market Mainstream Controllers Hand Held Programmer DS13 1
