120A 24v Brushless Dc Motor Controller for Material Handling Vehicles ...

Product Details

Place of Origin: Chengdu,China

Brand Name: DALA

Model Number: B2E

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: standard packing, as customer demands

Delivery Time: 7 - 15 working Days

Payment Terms: L/C,T/T,etc.

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    120A 24v Brushless Dc Motor Controller, Hybrid Motor Controller Bldc, 24v Brushless Dc Motor Controller Traction


Motor Type:	DC BrusLess Motor	Function:	Traction
Appolication:	Material Handling Vehicles ...	Nominal Voltage Range (VDC):	24V
Maximum Current:	120A	Size:	1509545.2mm

Motor Type:	DC BrusLess Motor
Function:	Traction
Appolication:	Material Handling Vehicles ...
Nominal Voltage Range (VDC):	24V
Maximum Current:	120A
Size:	1509545.2mm

Description

120A 24v Brushless Dc Motor Controller for Material Handling Vehicles ...

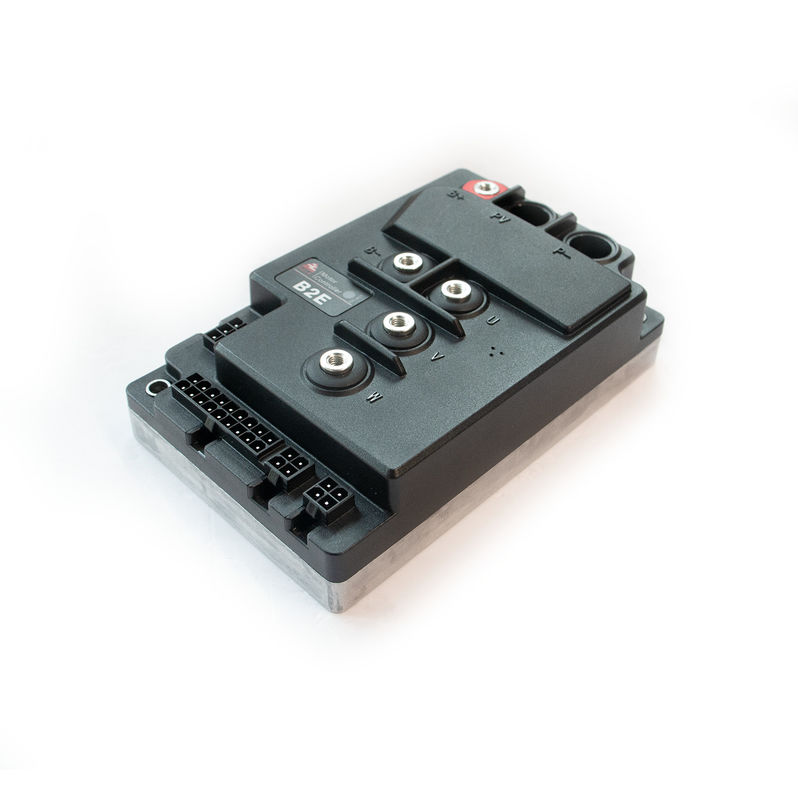

Brushless Dc Motor Controller B2E 24V 120A Hybrid Motor Control Technology and Hall-based position hold technology

Product Description:

B2E is a DC Brushless Motor Controller that incorporates patented technologies, including Hybrid Motor Control Technology and Hall-based position hold technology. It features in-house developed motor automatic identification technology, enabling efficient and precise control of the motor. This enhances vehicle reliability and comfort, making it a product that users can trust and use with confidence.

It supports CAN communication and parameterized programming, making it convenient for application and maintenance. It is a high-quality product that can be used with confidence.

Features:

Perfect Function

Supports 8 switching inputs and 3 low-side drive outputs, and various fuel inputs.
The built-in regen braking control function recovers energy of the battery when the motor stops and increases time of use.
The built-in motor control algorithm realize sprecise speed control, smooth starts and stop s over ramps.

Safe and Rliable

Superior sealing and thermal design to protect against water and significantly improve heat dissipation.
Provides protection for motor and controller from over-voltage, under-voltage, over-current, over-heat, anti reverse-connection, etc, with a full range of fault detection functions.
Short-circuit protection and open-circuit detection in the three low-power drive outputs, ensure vehicles safely operated.
Designed to meet EN13849-1(Cat2,PL=D)

Simple and Flexible

Easy wiring and installation saves labor costs.
Supports remote upgrading of the program.
PC programming tool provides easy parameter configuration, status monitor and troubleshooting.

Specifications

Content	Parameters
Model	B2E-2121	B2E-4091	B2E-4121
Nominal Input Voltage(V)	24	36/48	36/48
10s output Current Rating (A)	120A	90A	120A
1 Min output Current Rating (A)	90A	70A	90A
60 Min output Current Rating (A)	40A	30A	40A
Certification	EN1175-2020
Communication	CAN / Serial
Operating Temperature	-30℃~55℃
Storage Temperature	-40℃~85℃
IP Rating	IP65
Motor Type	Brushless DC Motor (Bi-Di)

Dimensions

120A 24v Brushless Dc Motor Controller for Material Handling Vehicles ... 0
