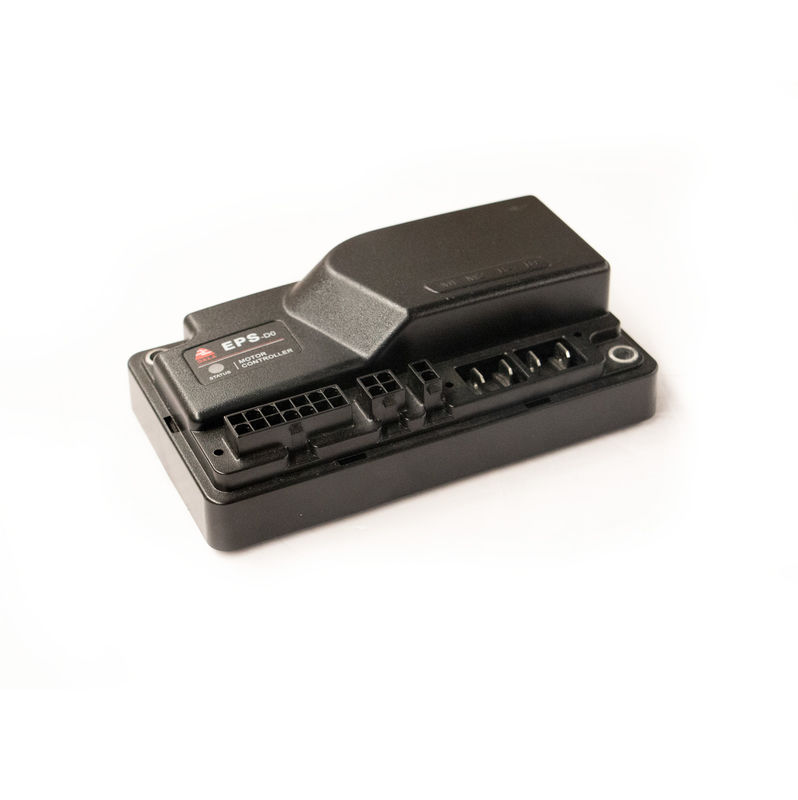

24V 70A Brushless Motor Controller For Material handling vehicles

Name: 24V 70A Brushless Motor Controller For Material handling vehicles
Brand: Dala Technology Co., Ltd.
SKU: EPS-D0
Availability: InStock

Product Details

Place of Origin: Chengdu,China

Brand Name: DALA

Model Number: EPS-D0

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: standard packing, as customer demands

Delivery Time: 7 - 15 working Days

Payment Terms: L/C,T/T,etc.

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    24V 150A Brushless Dc Motor Controller, Electronic Power Steering Dc Motor Controller, 150A EPS Motor Controller


Motor Type:	DC Brushed Motor	Function:	Electronic Power Steering (EPS)
Appolication:	Material Handling Vehicles	Nominal Voltage Range (VDC):	24V
Maximum Current:	70A	Size:	1317241mm

Motor Type:	DC Brushed Motor
Function:	Electronic Power Steering (EPS)
Appolication:	Material Handling Vehicles
Nominal Voltage Range (VDC):	24V
Maximum Current:	70A
Size:	1317241mm

Description

24V 70A Brushless Motor Controller For Material handling vehicles

Brushless Dc Motor Controller EPS-D0 24V 150A Electronic Power Steering (EPS)

Product Description:

EPS-D0 is an efficient and secure DC brushed permanent magnetic motor controller used for Electric Power Steering (EPS) scenarios. EPS-D0 serves as a steering system controller, interpreting steering commands input from external sources and feedback from wheel positions and then drives the steering motor to move the steering wheel to the desired position.

EPS-D0 is compatible with the corresponding communication protocol of the DALA AC traction motor controller. During starting stage, it needs to do a handshake with the traction controller to enable necessary functions. It can also operate independently to perform the steering function.

Features:

Motor Control

Both absolute and relative position control modes are available.
PWM technology improves the efficiency.
The closed-loop motor control algorithm provides reliable and precise position control.

Safety & Reliability

Dual steering command inputs for redundancy check is supported.
Fault output can be used to shut down the main contractor.
Steered wheel position (angle) output can be used to limit the traction motor speed.
Periodic Self-Tests for: Flash, EEPROM parameters, Motor Open sensor +V power supply.
Software and hardware watchdog.

Simple & Flexible

External LED status lights provide quick fault diagnosis.
Integrated hour meter function.
DALA DS13 handheld programmer and DS14 PC-based programmer offer easy programming and robust system diagnostics and monitoring capabilities.

Robust Reliability

Electronics sealed up to IP65 standard.
Standard Molex Connector.
Reverse polarity protection on battery connections and inputs protected against shorts.
Intelligent thermal cutback and over voltage/under voltage
The steering command input supports dual-channel complementary analog sensors.
The steering angle feedback input supports two types of sensors: quadrature encoders and analog sensors.
Configurable homing modes.

Specifications

Content	Parameters
Model	EPS-D0
Nominal Input Voltage	24
20s output Current Rating (A)	70A
1 Min output Current Rating (A)	40A
60 Min output Current Rating (A)	20A
Communication	Serial
Operating Temperature	-30℃~55℃
Storage Temperature	-40℃~85℃
IP Rating	IP65
Motor Type	Brushed DC Motor (Bi-Di)

Dimensions

24V 70A Brushless Motor Controller For Material handling vehicles 0
