24V 150A DC Motor Controller For Stackers Industrial Vehicles

Product Details

Place of Origin: Chengdu,China

Brand Name: DALA

Model Number: C0E

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: standard packing, as customer demands

Delivery Time: 7 - 15 working Days

Payment Terms: L/C,T/T,etc.

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    Traction Pump DC DC Motor Controller, 24V 150A DC DC Motor Controller, Brushed Dc Motor Controller C0E


Motor Type:	DC Brushed Motor	Function:	Traction,Pump
Application:	Stackers，Industrial Vehicles	Nominal Voltage Range (VDC):	24V
Maximum Current:	150A	Size:	155.5120.559.5mm

Motor Type:	DC Brushed Motor
Function:	Traction,Pump
Application:	Stackers，Industrial Vehicles
Nominal Voltage Range (VDC):	24V
Maximum Current:	150A
Size:	155.5120.559.5mm

Description

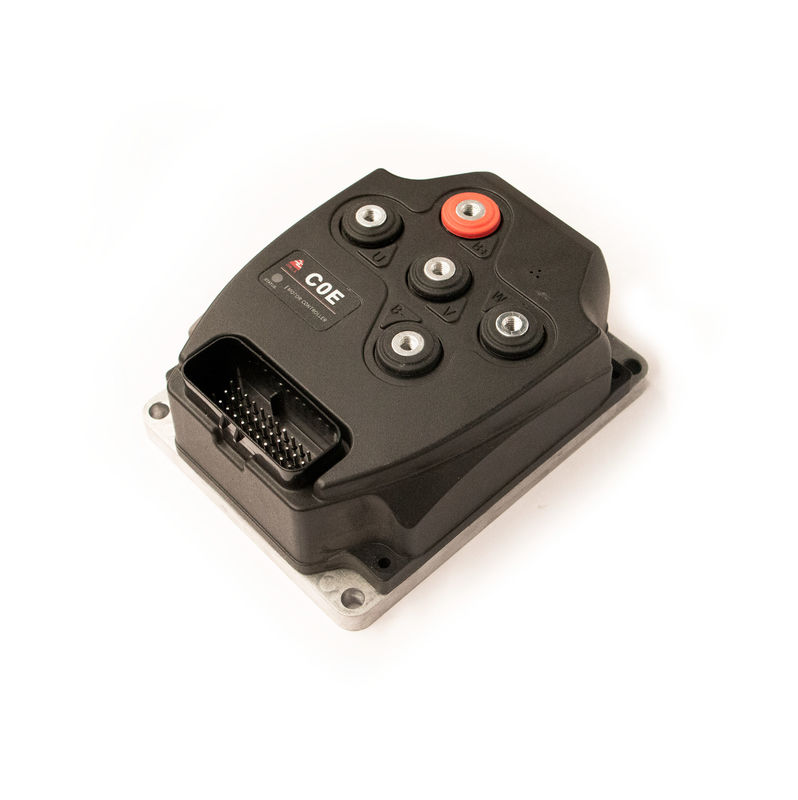

24V 150A DC Motor Controller For Stackers Industrial Vehicles

Brushed Dc Motor Controller C0E 24V 150A Traction Pump(Two-In-One DC Brushed Motor Controller)

Product Description:

C0E is a two-in-one DC brushed motor controller, integrating the control of traction and pump motors. It is mainly used in stackers but can also be applied to other industrial vehicles. It fully supports parameterized programming, making it convenient for application and maintenance. It is a high-quality product that can be used with confidence.

Features:

Higher Performance and Improved Functionality

Integration of traction and high-power pump motor control.
Dual microprocessor units, cross-checking, high fault diagnosis coverage.
The controller is designed according to the EN1175-2020 safety standard.
Supports CAN and serial port debugging Water-resistant with an IP65 rating and supports customized protocols.

Unparalleled Flexibility

Traction control monitoring.
Interlocking braking.
Emergency reverse.
Safety braking.
Speed limitation.
Pump operation logic.

Specifications

Content	Parameters
Model	C0E
Nominal Input Voltage	24
10s output Current Rating (A)	Traction:150A,Pump:300A
2 Min output Current Rating (A)	Traction:120A,Pump:170A
60 Min output Current Rating (A)	Traction:60A
Communication	Serial/CAN
certification	EN1175-2020
Operating Temperature	-30℃~55℃
Storage Temperature	-40℃~85℃
IP Rating	IP65
Motor Type	Brushed DC Motor (Bi-Di)

Dimensions

24V 150A DC Motor Controller For Stackers Industrial Vehicles 0
